    Product Details

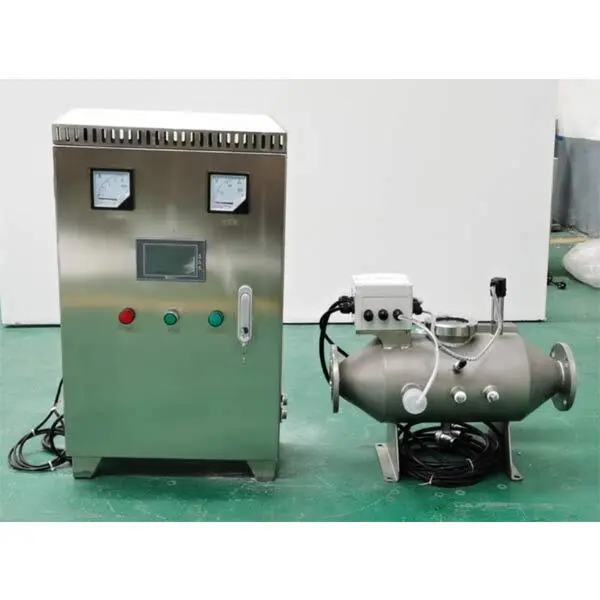

    Medium Pressure UV System

    Medium Pressure UV System is designed and optimized for advanced photo-oxidation process and conventional disinfection. It is also ideal for reducing various chemicals in chloramines in swimming pools. Water is healthier and swimming is more at ease.



    Working Principle

    By irradiating bacteria and viruses with ultraviolet rays, the ultraviolet spectrum energy is absorbed by bacterial nucleic acids (DNA/RNA), causing their nucleic acid structure to be destroyed and losing the ability to reproduce and reproduce, so as to achieve the sterilization effect. It is a 100% residue-free disinfection the way.

    In addition to the sterilization effect, medium-pressure ultraviolet light also has the function of decomposing organic matter, chloramine, urea, and trihalomethane. The provisions of "Technical Regulations for Swimming Pool Water Supply and Drainage Engineering CJJ 122-2017" require the use of medium-pressure ultraviolet light, medium-pressure ultraviolet light Ultraviolet rays have been used in swimming pool disinfection for more than ten years, especially the 2012 London Olympics swimming pool disinfection all used medium-pressure ultraviolet light for disinfection. More and more swimming pools use medium-pressure ultraviolet light for disinfection.

    Specification


    medium-pressure-uv-system

    Features
    1. High sterilization spectrum: medium-pressure ultraviolet light can achieve continuous ultraviolet output of 100-400nm multi-spectrum, unlike low-pressure ultraviolet light, it can only output 253.7nm ultraviolet light, and can achieve a sterilization rate of more than 99.9%;
    2. Strong sterilization: high sterilization efficiency, fast speed, sterilization time is generally completed within a few seconds.
    3. The short-wavelength of 1 85nm output by medium-pressure ultraviolet rays can effectively degrade the total amount of organic matter (TOC) in the water. TOC is the culprit of the long algae in the swimming pool, which effectively avoids this phenomenon. In addition, the other benefits of TOC degradation are Increase the water penetration rate from 75% to more than 97%, which makes the ultraviolet sterilization effect also improved by at least three-thirds. ).
    4. The 245nm, 297nm, and 340nm ultraviolet light output by medium-pressure ultraviolet light can degrade the chlorine disinfection by-products-chloramine, dichloramine, and trichloramine, respectively, which eliminates the occurrence of the carcinogen trihalomethanes (THMs) and reduces The pungent smell in the swimming pool improves the swimming environment.
    5. Medium-pressure ultraviolet radiation has a small footprint, safe and reliable operation, simple maintenance and low cost.
    6. The service life of medium-pressure ultraviolet lamp is 5000-6000h, which is lower than the service life of low-pressure ultraviolet lamp 10000-13000h.

    4.medium-pressure-uv-system


    Among them
    1~3 points are aimed at infants and children and private swimming pools, which can meet the sterilization and disinfection effect without adding disinfection tablets;
    4~5 points are aimed at the competition-level swimming pool, which needs to be administered to maintain the long-term disinfection effect. Medium-pressure ultraviolet light is the best match, which not only ensures the disinfection effect, but also avoids the harm caused by toxic by-products in rabbits.



    Application

    3.medium-pressure-uv-system

    Application



    Medium pressure UV lamp, the pressure inside the lamp is 104 ~ 106 Pa, multi-spectral continuous ultraviolet spectrum output, the power of a single lamp is up to 7000W,Completely destroy microbial tissue structure, while low-pressure UV light is only used for microbial DNA structure.

    Medium pressure ultraviolet sterilization characteristics:


    1.High sterilization spectrum: medium-pressure ultraviolet rays can achieve 100-400nm multi-spectral continuous ultraviolet output, different from low-pressure ultraviolet rays that can only output 253.7nm ultraviolet rays, which can achieve a sterilization rate of more than 99.9%;


    2.Strong sterilization: high sterilization efficiency and fast speed, and the sterilization time is generally completed within a few seconds.


    3. The 185nm short-wave output of medium-pressure ultraviolet rays can effectively degrade the total amount of organic matter (TOC) in the water. TOC is the main culprit for the slippery algae in the swimming pool, which effectively avoids this phenomenon. The penetration rate of water has increased from 75% to more than 97%, which has increased the effect of ultraviolet sterilization by at least one third. .


    4. The 245nm, 297nm, and 340nm band ultraviolet rays output by medium-pressure ultraviolet rays can degrade the harmful by-products of chlorine disinfection, monochloramine, dichloramine, and trichloramine, respectively, eliminating the generation of carcinogen trihalomethanes (THMs) and reducing swimming pool The pungent smell improves the swimming environment.


    5.The medium-pressure UV has a small footprint, safe and reliable operation, simple maintenance and low cost. Medium pressure UV application fields: 6 months-3 years old infant parent-child swimming pool, private villa swimming pool, high-end private club (five-star hotel) swimming pool, competition-level swimming pool.
