S350 Pipeless Pool Filter

Instruction

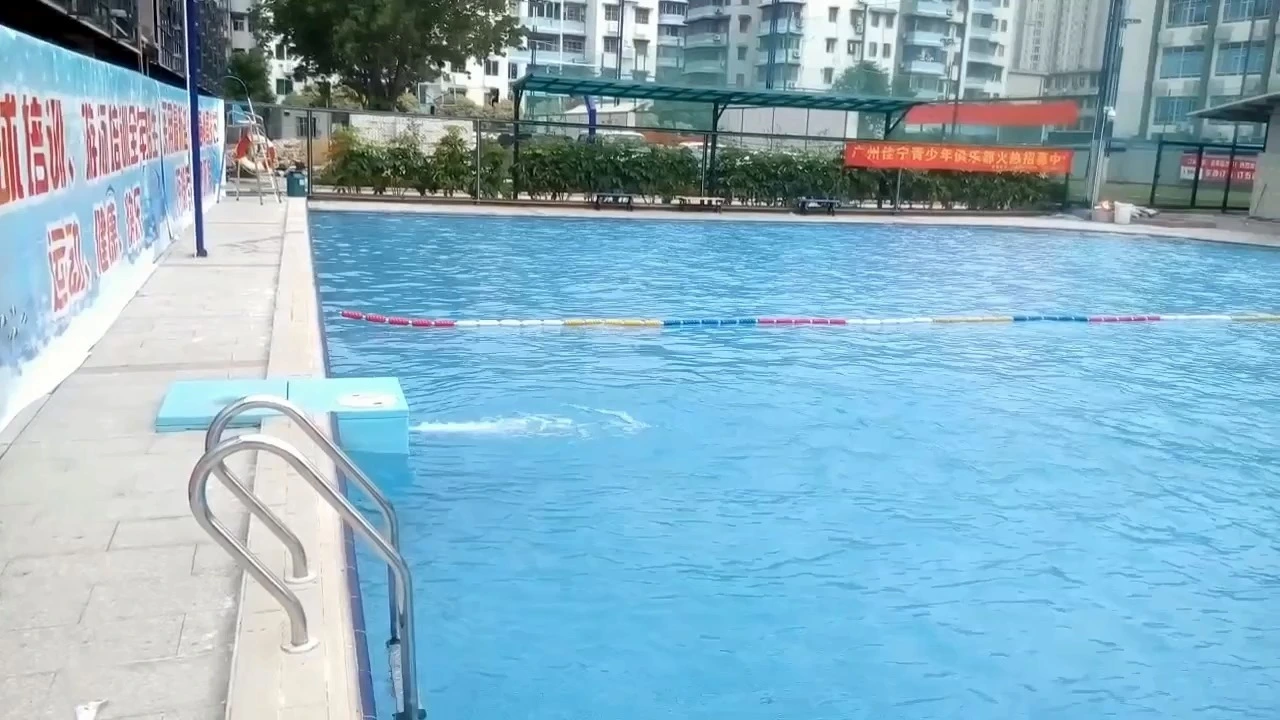

Integrative Swimming Pool Filter S350 is without machine room and install in the pool wall directly, which is not protruding and coordinated with the surrounding environment. Then can save the land and the cost of building machine room. S350 is without any chemical and environmental friendly. Patented product, and it comes with chlorine dioxide generator (also known as Salt Chlorine Machine). Just need to add certain percentage of salt or sea salt into the pool, then the chloride dioxide generator will electrolysis the salt to be chloride ions to disinfect the water of pool. And it no need to change the water of pool for whole year which is 100% keep away with chemicals, and without any side effect to human. No need backwashing, can save water, and just need to clean the filter bag and remove the dirty of filter. And it need to equip with two filter bags, one for spare, and can use more than two years.

inquire online

Product Details

Feacture
1. A newest production with two installation methods which is not only suitable for transformation pool (wall-mounted method) but also suitable for new pool as water treatment system (embedded method).

S350 Pipeless Pool Filter 04

2. The first salt electrolysis disinfection in the world, which 100% keep away from chemical and do not need to change water of pool in whole year.
Solution:
Saltwater chlorinator is an equipment which adopt salt electrolysis technology to generate chlorine to disinfect pool water.
Electrolysis process: Put the salt into water and through the electrolytic tank, then the sodium chloride conversion to chlorine, and chlorine dissolved into water, then into sodium hypochlorite for disinfection.
Safe and environmental friendly
Relaxation: Automatically and intelligently disinfect
Safety: Reduce the storage and contact of chlorine, and health to human
Comfortable: clean and safety
Enjoy: There has physiotherapy effect in salt water, meanwhile it is no harmful for your skin and eyes.

S350 Pipeless Pool Filter 05

Specification

S350 Pipeless Pool Filter 13
S350 Pipeless Pool Filter 14

Material

Polyvinyl Chloride (one-time plastic injection molded)

Type

Single filter type, Salt chlorine type, Dosing type

Dosing / Salt Chlorination Machine (Chlorine production: 45 / h)

Yes

Filter Media

DuPont Filter Bag

Underwater Lights

Yes

Transformer

Yes

Bubble Adjustment Switch

Yes

Suction Function

Yes

Intelligent Electronic Control Box

Yes

Technical Parameters

Water Pump

0.35-1.5KW 220V 50HZ two-speed pump can adjust the flow rate

Flow Rate

15-35m3/h

Filter Efficiency

5-15um

Underwater Lights

8W 12V*2pcs

Inlet

1pcs

Torrent Nozzle

2pcs

Weight

90KGS

Installation Method

Embedded / Wall-mounted method

Machine Size

1210*745*1100mm

Packing Size

1370*870*1190mm

Bypass Outlet

Yes

Advantages of Pool Filter S350

1. (Energy saving and environmental friendly)
Advantage 1: Economical and Practical
Embedded in the pool wall which is not protruding and coordinated with the surrounding environment, then can save the land and the cost of building machine room.
2. (Without medical)
Advantage 2: Safety and Environmental Protection
Patented product, and it comes with chlorine dioxide generator (also known as Salt Chlorine Machine). Just need to add certain percentage of salt or sea salt into the pool, then the chloride dioxide generator will electrolysis the salt to be chloride ions to disinfect the water of pool. And it no need to change the water of pool for whole year which is 100% keep away with chemicals, and without any side effect to human.
3. (Intelligent control)
Advantage 3: Intelligent Control:
You can set the switch of machine time, to ensure the filter effect, then to extend the using life of motor.
4. (Beautiful and practical)
Advantage 4: Beautiful, Reliable and Safety
The material of shell is PP which adopt the technology of Korea LDPE, one-time injection molded. And it is more environmentally, friendly and durable than acrylic and fiberglass, and can load more than 300kg.
